- Inductive lockout detector for applications in potentially explosive areas.
- NAMUR Power
- Detection range: 2 mm range (±10%)
- M12x1 mm metal thread, flush mounting
- Cable connection: 6 m, PVC; 2 x 0.34 mm²
- Ambient temperature: -20 to +80 °C
- Degree of protection: IP 67
- IECEx BVS 06.0003 approval
- ATEX marking: Ex II 1D Ex ia IIIC T90° C Da Ta: -20…70 °C and Ex II 1G Ex ia IIC T5 Ga Ta: -20… 80 °C
- Intrinsic safety barrier and junction box required, not included

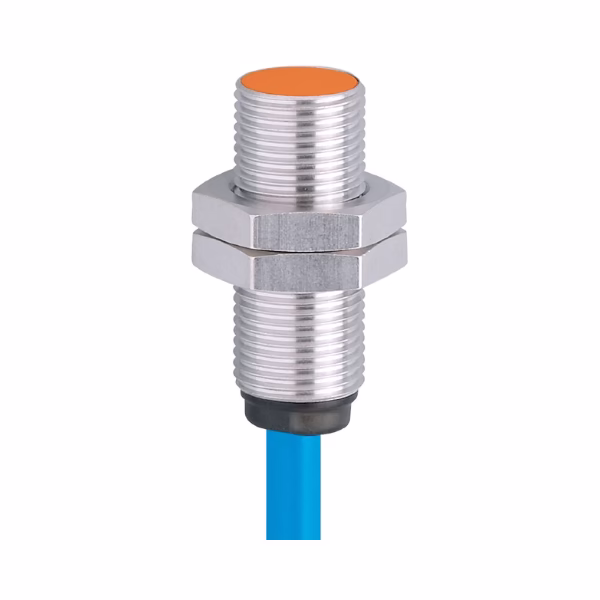

Blockage Detector – NX
It allows you to monitor the status of the flap when it is closed. To this end, a signal will normally be given when the flap is closed. *For the installation of this detector, it will be necessary to install an intrinsic safety barrier.
