It allows detecting the closing and blocking of the flap in the NOVEx II valve, alerting that the system has acted after an explosion or anomalous event.
This product is not available for purchase in all countries (please inquire)
It allows detecting the closing and blocking of the flap in the NOVEx II valve, alerting that the system has acted after an explosion or anomalous event.
The inductive detector emits a signal when the flap is in the closed and locked position, indicating the need for manual reset to restore system operation.

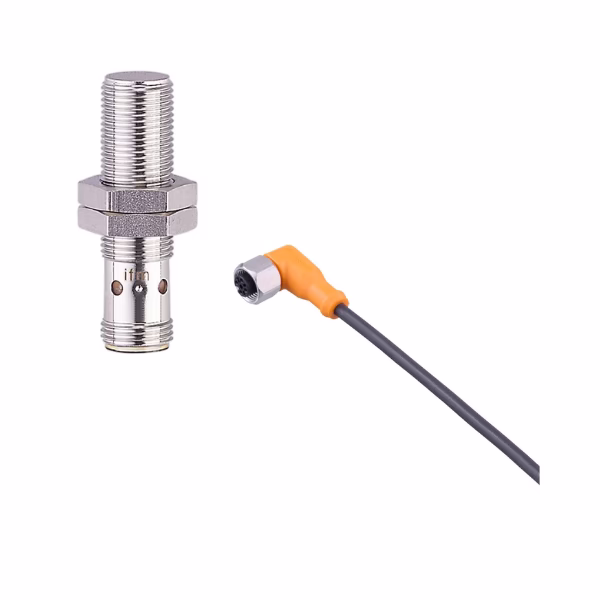

Inductive detector for explosive atmospheres
Feed: PNP
Output Function: Normally Open
Sensing distance: 4 mm (±10%)
Threaded Metal Housing: M12x1mm/L=45mm
Working temperature: -25 to +60 ºC
Degree of protection: IP67
ATEX marking: Ex II 3G Ex ec IIC T6 Gc and Ex II 3D Ex tc IIIC T85°C Dc
Do you have any questions?
Write to us and our technical team will answer you.
