Cleaning System

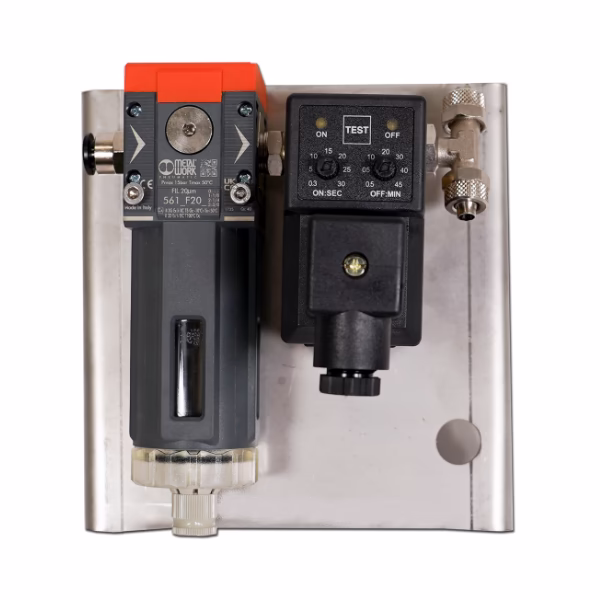

The automatic cleaning system keeps the inside of the NOVEx valve free of dust accumulations, performing pressurized air injection cycles periodically.

The automatic cleaning system keeps the inside of the NOVEx valve free of dust accumulations, performing pressurized air injection cycles periodically. This allows to extend the intervals between manual cleanings and ensure the correct operation of the flap in environments with a high dust load.

Recommended for installations with abrasive material or very dusty processes, where it is critical to avoid obstructions in the valve closure.

  • Recommended working pressure: 6–8 bar (max. 12 bar)
  • Maximum flow rate: 0.26 m³/h
  • Pneumatic connection: Ø 8 mm
  • Adjustable cycles: Interval between injections: 0.5 to 45 min + Injection duration: 0.5 to 10 s
  • Power supply: 24 VDC / max. 1 A
  • Degree of protection: IP65
  • Temperature range: -10 ºC to +50 ºC
  • ATEX Marking: II 2D
