- Differential pressure transmitter
- Range: 0 to 500 mm H2O (50mbar)
- Pmax: 750 mbar
- Temperature: from -10ºC to +60ºC
- Polycarbonate case
- Pressure sockets: 2 sockets for 6×8 mm hose
- Display: 15mm 4-digit LED-Display
- Power supply: 24 Vdc
- Contact: 2 Relay
- Output: 4-20 mA
- Protection: IP65
- ATEX: Ex II 3 D Ip65 T85ºC

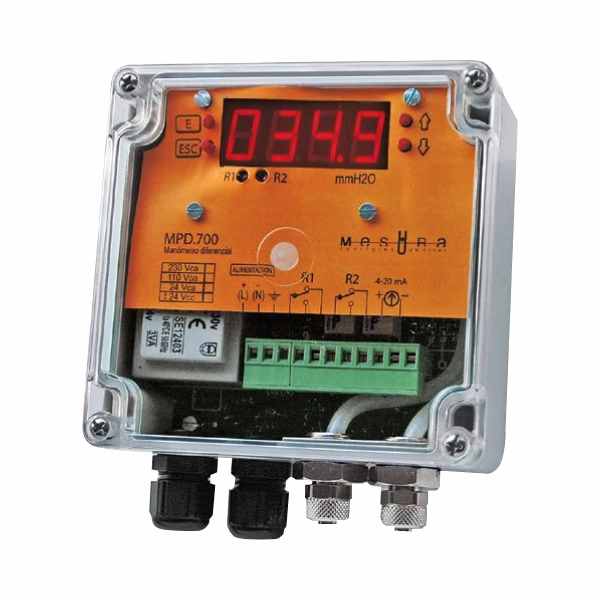

Differential pressure detector
It allows continuous measurement of pressure at both ends of the valve. It is equipped with a microprocessor that facilitates its programming. Both relays, hysteresis and timer can be programmed according to the customer’s needs.
