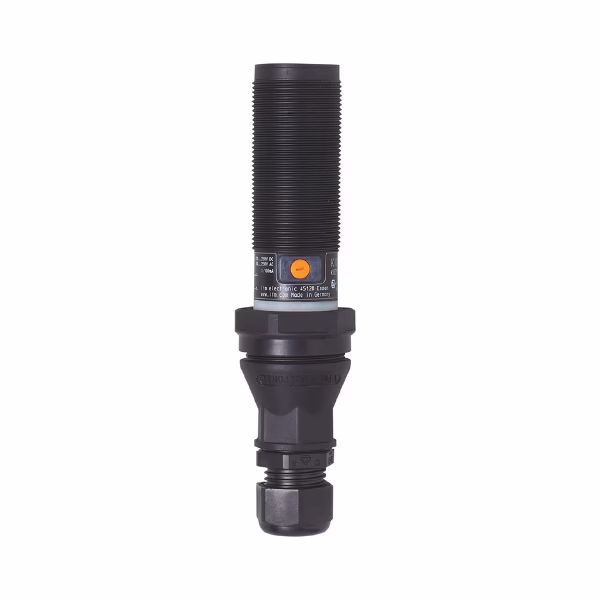

Dust accumulation detector

Dust accumulation detector

It allows the detection of excessive accumulation of dust at the base of the NOVEx valve, avoiding obstructions that may interfere with the correct closure of the flapper.

This product is not available for purchase in all countries (please inquire)

It allows the detection of excessive accumulation of dust at the base of the NOVEx valve, avoiding obstructions that may interfere with the correct closure of the flapper.

The system generates a warning signal if the dust layer exceeds 4 mm, the recommended limit value to ensure the functionality of the insulation. The sensor is adjustable and allows for effective preventive maintenance.

  • Capacitive detector, PNP power
  • Sensing distance: up to 15 mm (non-flush, adjustable)
  • Dimensions: M30 x 1.5 mm, length 150 mm
  • Supply voltage: 10–30 V DC
  • Working temperature: -20 to +60 ºC
  • Degree of protection: IP65 / IP67
  • ATEX marking: II 3D Ex tc IIIC T90°C Dc X, IECEx certified
  • Connection: terminal blocks from 0.34 to 1.5 mm²; cable gland M20 x 1.5 mm
  • Incl. mounting adapter with G 1 external thread
