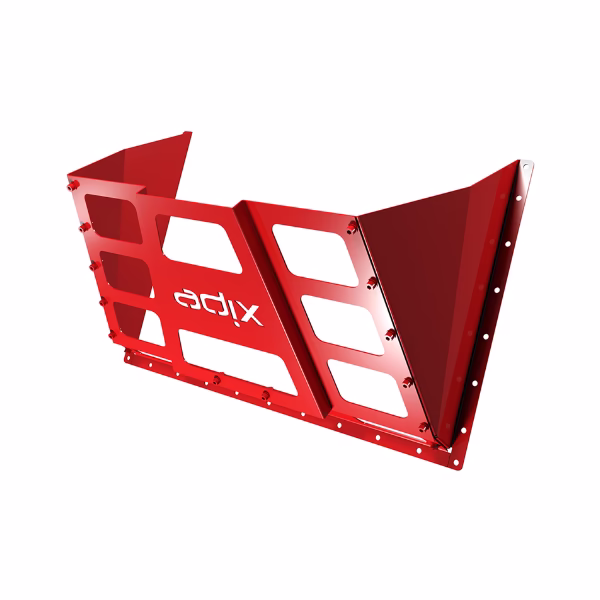

Explosion vent deflector. Deflex

Device designed to divert the flame, pressure and heat generated in an explosion to a safe area, minimizing risks to people and facilities.

Device designed to divert the flame, pressure and heat generated in an explosion to a safe area, minimizing risks to people and facilities. By limiting the opening angle of the panel, DEFLEX reduces the required safety zone and expands the usable working area.

  • Substance Type: Powder
  • Deflection angle: 45º
  • Maximum kSt: 305 bar·m/s
  • Maximum pressure: 10 bar
  • Maximum burst pressure: 1 bar
  • Maximum static pressure: > 0.2 bar
  • Compatible with vaulted and flat panels.
  • Maximum efficiency 90% (consult according to size)
