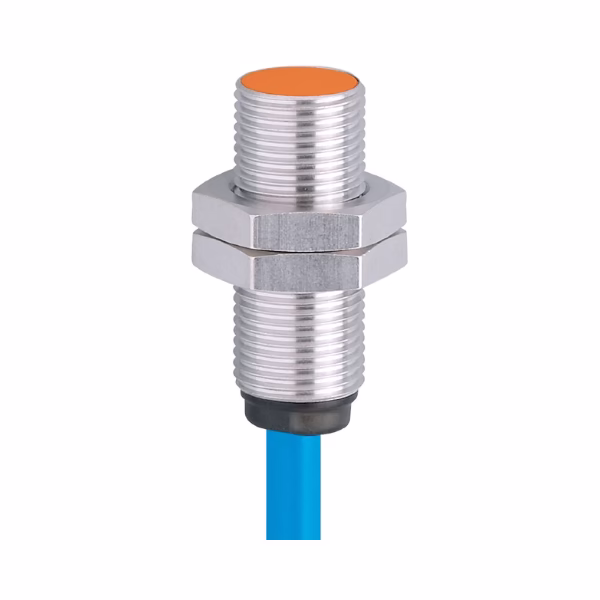

- Inductive position detector for applications in potentially explosive areas.
- NAMUR Power
- Detection range: 2 mm range (±10%)
- M12x1 mm metal thread, flush mounting
- Cable connection: 6 m, PVC; 2 x 0.34 mm²
- Ambient temperature: -20 to +80 °C
- Degree of protection: IP 67
- IECEx BVS 06.0003 approval
- ATEX marking: Ex II 1D Ex ia IIIC T90° C Da Ta: -20…70 °C and Ex II 1G Ex ia IIC T5 Ga Ta: -20… 80 °C
- Intrinsic safety barrier and junction box required, not included
Flap Position Detector – NX
Allows monitoring of the open position of the flapper. *For its installation, the installation of an intrinsic safety barrier will be necessary.
