Flap Position Detector – NXII

It allows continuous monitoring of the normally open position of the NOVEx II valve flap, ensuring that the system is maintained under normal operating conditions.

It allows continuous monitoring of the normally open position of the NOVEx II valve flap, ensuring that the system is maintained under normal operating conditions.

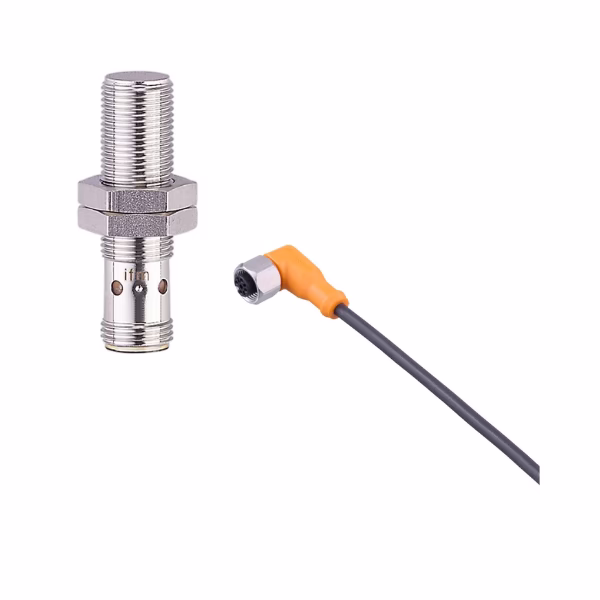

The inductive detector emits a signal when the flap is fully open. In the event of loss of this position, the absence of a signal allows alarms to be activated or safety stops to be made.

  • Inductive detector for explosive atmospheres
  • PNP Feeding
  • Normally open exit
  • Sensing distance: 4 mm (±10%)
  • Metal threaded housing: M12x1mm/L=45mm
  • Ambient temperature: -25 to +60 ºC
  • Degree of protection: IP67
  • ATEX marking: Ex II 3G Ex ec IIC T6 Gc and Ex II 3D Ex tc IIIC T85°C Dc
