Wear Detector

Wear Detector

Accessory designed to detect abrasion wear on the NOVEx flap valve, caused by the continuous passage of product into the duct.

This product is not available for purchase in all countries (please inquire)

Accessory designed to detect abrasion wear on the NOVEx flap valve, caused by the continuous passage of product into the duct.

It is installed at the bottom of the valve, replicating the wear conditions of the flapper. When the wear reaches a critical level, the sensor interrupts the signal.

*For its installation, the installation of an intrinsic safety barrier will be necessary.

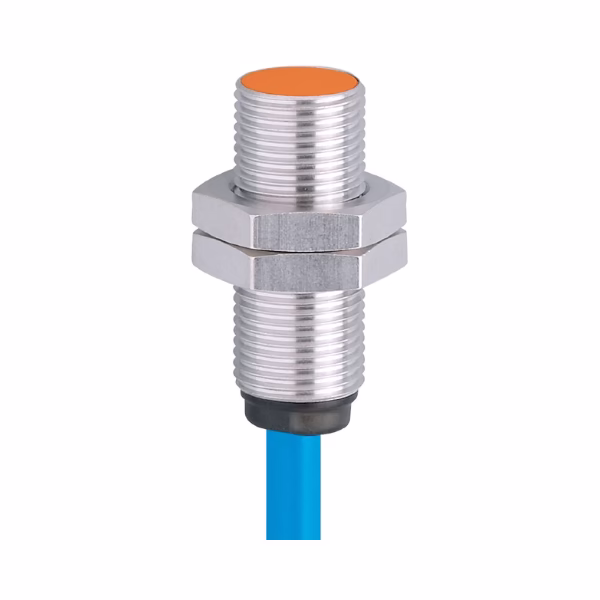

  • NAMUR inductive sensor, suitable for ATEX zones
  • Normally closed
  • Sensing distance: 1 mm (±10%), flush mounting
  • Thread: M12x1 mm
  • Cable: 2 m, PVC, 2 x 0.14 mm²
  • Working temperature: -20 to 80 ºC
  • Degree of protection: IP67
  • Atex marking: II 1G Ex ia IIC T6 Ga Ta -20…70°C / II 1G Ex ia IIC T5 Ga Ta -20…80°C II 1G Ex ia IIC T5 Ga Ta -20…80°C / II 1D Ex ia IIIC T200 90°C Da ta: -20…70°C II 1D Ex ia IIIC T200 90°C Da ta: -20…70°C / II 1D Ex ia IIIC T200 100° C Da ta: -20…80°C II 1D Ex ia IIIC T200 100° C Da ta: -20…80°C
